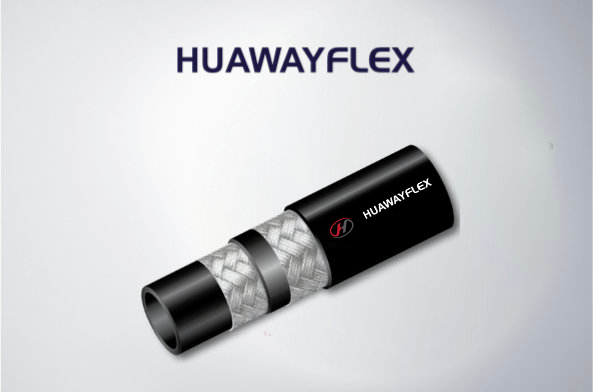

Hydraulics: low-medium pressure lines, return line
Mineral oils, vegetable and rape seed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion, water
MF2000® Multifit type couplability
Tube: Oil resistant synthetic rubbe
Continuous Service Temperature Range: -40°F / +212°F -40°C / +100°C
Max Operating Temperature: +257°F +125°C
Cover: Synthetic rubber with weather and heat resistance
Reinforcement: One high tensile steel braid
Applicable Specs: EN 853 1SN - SAE 100 R1AT - ISO 1436-1 1SN/R1AT
| PART NO. | mm | DASH | Inch | mm | mm | MPa | MPa | mm |
| 1SN04 | 6 | -4 | 1/4" | 6.4 | 13.4 | 22.5 | 90 | 100 |
| 1SN05 | 8 | -5 | 5/16" | 7.9 | 15 | 21.5 | 85 | 115 |
| 1SN06 | 10 | -6 | 3/8" | 9.5 | 17.4 | 18 | 72 | 130 |
| 1SN08 | 13 | -8 | 1/2" | 12.7 | 20.6 | 16 | 64 | 180 |
| 1SN10 | 16 | -10 | 5/8" | 15.9 | 23.7 | 13 | 52 | 200 |
| 1SN12 | 19 | -12 | 3/4" | 19 | 27.7 | 10.5 | 42 | 240 |
| 1SN16 | 25 | -16 | 1" | 25.4 | 35.6 | 8.8 | 35 | 300 |
| 1SN20 | 32 | -20 | 1.1/4" | 31.8 | 43.5 | 6.3 | 25 | 420 |
| 1SN24 | 38 | -24 | 1.1/2" | 38.1 | 50.6 | 5 | 20 | 500 |
| 1SN32 | 51 | -32 | 2" | 50.8 | 64.1 | 4 | 16 | 630 |
